hibry5

Advanced, reliable and secure. Affordable for everyone.

hibry5 is the technology that simplifies your daily life. An advanced security system combines smart technology, sophisticated design and unrivalled ease of use. Automatic and manual functions in a single lock. If you already have Hibry4.0, upgrading to hibry5 is quick and easy. With the conversion kit, you can update the touchscreen panel and the interface in just a few minutes and gain access to all the hibry5 technology, without having to replace the structure.

Find out more

Features

Design

Design

Exposed hinges in Synergy In, Synergy Out versions, or disappearing hinges in Sleek flush-to-the-wall and D180 versions. hibry5 comes in a wide variety of configurations, and all of them can be customised thanks to a limitless choice of styles, finishes, coatings and colours. Available in push or pull versions, single or double-leaf. The touchscreen panel with integrated LED bar adds a unique touch of style and modernity.

Technology and security

Technology and security

hibry5 combines the convenience of a motorised system and mechanical lock control.

In the event of an electronic malfunction or a power outage, you can open and close the door as usual: just turn the key in the lock, and you’re free to go.

Opening solutions

Opening solutions

NFC technology applied to the different keys, Easy Key with built-in transponder, Key Card, Key Control for any key fob: unlocking hibry5 is as natural as using a smartphone. Or you can use a biometric reader, a keypad, or any external device via a dry contact on the frame. Do you already have Hibry4.0?
The hibry5 conversion kit includes the new NFC keys and upgrades your door in 3 simple steps. No structural changes required; compatibility guaranteed. Ask your authorised dealer.

Design

Dress up your door.

panels

In every Dierre security door, the quality of the cladding is also guaranteed, as attested by the mark on the panel that certifies the value of the materials and finishes. If you choose the Sleek hibry5 version, you can make it blend in seamlessly or make it the focal point of your wall.

As you like it

Handles

Every element contributes to defining an elegant, top-performing door. Refined, exclusive handles – available in a “handle-handle” or “handle-swivel knob” combination  – do away with the need to insert a key into the cylinder in order to disengage the lock by a half-turn and open the door.

Eclectic spirit, poised character.

Sleek and hibry5

hibry5 is a cutting-edge opening solution that can be applied to three Dierre armoured door models: Sleek, Synergy In, Synergy Out. If you are seeking a minimalist, elegant style with a striking visual impact for your home, Sleek hibry5 is the highest expression of Dierre design and technology.

Thanks to its Macron 5.0 concealed hinges, it opens to 180 degrees, ensuring high thermal and acoustic properties with its double rebate, and can reach max height and width dimensions.

Open up, hibry5.

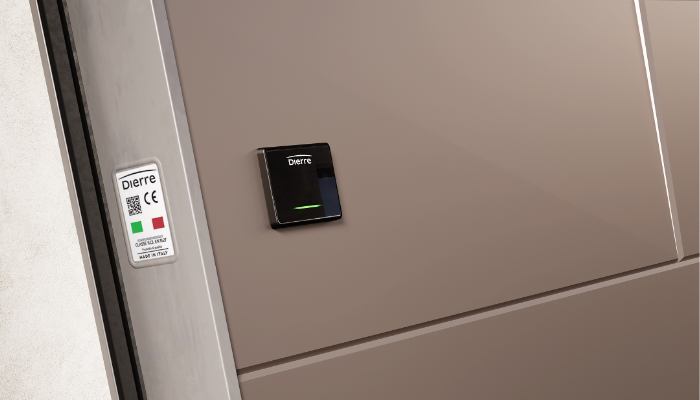

Touchscreen

From the outside, just move the electronic key close to the touchscreen on the door: the LEDs go out and the bolts retract; then, lower the handle, or turn the knob, to disengage the lock by a half turn: hibry5 opens and, as you close it, it automatically locks up again. From the inside, hibry5 opens with the touch screen, which you can use to activate new electronic service keys. In the event of a fault or a power failure, the door can be opened manually by inserting the key into the cylinder.

Technology and security

structure of the door leaf
Open view
Dog bolts
Hook deviators
Large sizes

structure of the door leaf

hibry5: an advanced opening system for Sleek, Synergy In and Synergy Out. Within the thickness of a typical security door, the revolutionary frame of these three models combines and enhances four different technical features – thermal insulation, sound insulation and resistance to break-in attempts – achieving levels of absolute excellence.

Download the catalogue

Open view

Open view is the new door limiter that allows a clear, unobstructed view. It enables you to partially open the door and block it without the field of vision being restricted by the customary security arm. Fitted to the upper part of the frame, the new device provides a perfectly free view.

Dog bolts

When the door is closed, the dog bolts fitted along the hinged side of the door are inserted into the corresponding cavities in the frame to prevent the door from being unhinged. They can be either the fixed bolts specially designed for the Sleek hibry5 model, or the Shild hinge bolts in galvanised steel used in the Synergy In and the Synergy Out hibry5 models.

Download the catalogue

Hook deviators

Featuring extremely innovative design, hook deviators, operated by the lock, enter into the frame and, with a 90-degree parallel rotation, firmly anchor and block the door.

Large sizes

A large door. Thanks to its special structure and the solidity and technology of its hinges, the Sleek hibry5 model imposes its exclusive character, with sizes ranging from a minimum of 500×1900 mm to a maximum of 1200×2850 mm, while maintaining its excellent break-in proof, thermal and acoustic properties.

Downoload the catalogue

opening solutions

New Power cylinder
lock trap system
keys & keyless
myDOOR
Conversion kit

New Power cylinder

Two models are provided to mechanically disengage the lock, the new high-security Power cylinder supplied as standard and the D-Up cylinder available on request. Both come with Easy Key for electronic and manual opening.

  • Protected key duplication
  • Modular cylinder
  • Patented anti-tampering system
  • Anti-bumping cylinder mechanism
  • Twice the strength of brass cylinders against mid-span breaking

lock trap system

All Dierre cylinder locks with gear systems are equipped with a security lock “trap” system that blocks the carriage and keeps the bolts locked in place in the event of an attack being made on the defender plate protecting the cylinder. If the plate is removed and the cylinder is broken, the system steps in and locks the bolts, preventing intruders from opening the lock.

keys & keyless

Easy Key, Key Card and Key Control can be set to two different modes:

  • “master” key, enabled to manage all the electronic functions of hibry, such as, for instance, registering new keys.
  • “service” key, enabled to open and close the door. In addition to these keys, the system can be equipped with a biometric fingerprint reader, a numerical keypad, and any external device capable of interacting with the door via the dry contact on the frame.

myDOOR

Hibry5 can be managed with an innovative modular control & command system for the internal unit, which is comprised of an NFC reader, a status LED, and an LCD touch screen that can be used to configure the system, while the external unit includes an NFC reader and a status LED. This technology is the basis for the hybrid nature of the lock, which can be used both in electronic mode (by means of a smartphone or a remote control) and in mechanical mode, without having to change any settings. This system does away with the need for a display and an external touchscreen as the management of the door can be transferred to the myDoor smartphone app. The modern design of the hibry5 lock features two electronic escutcheons, visible on both door panels.

Conversion kit

Do you already have Hibry4.0? The new version is already yours. Upgrading from Hibry4.0 to hibry5 is simple, quick and does not require replacing the door. The conversion kit updates the touchscreen panel and the interface whilst keeping the existing structure unchanged, and includes the NFC electronic keys (Key Card and Key Control). Ask your authorised dealer.
